10/90 20/80 30/70 40/60 50/50 5/95 DIFFERENT MODEL 1X2 0.9MM FBT OPTIC SPLITTER WITHOUT CONNECTOR
Product Description:

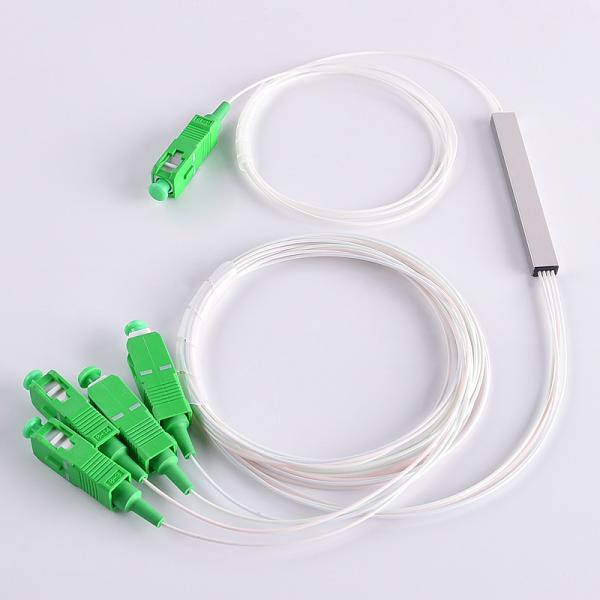

This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32 and 64. And we produce 3 different type spliter PLC, such as micro tube, insert box type and ABS plastic box type. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber multi channel direct output with a compact design and easy to use.
- Product Type FBT Coupler Port Configuration MxN
- Division ratio 1/99 ~ 50/50 Wavelength 1310/1490 / 1550nm
- Type of Class P Fiber Length 0.5 m / 1.0 m / 1.5 m
- Connector Type Without connector Input / Output Cable 900μm / 0.9mm
- Packaging Steel pipe Return loss ≥55dB
- Operating temperature -40 ° C ~ + 85 ° C Storage temperature
Features:
- Low Insertion Loss
- Low Polarization Dependent Loss
- Wide Operation Wavelength
- Wide Operation Temperature
- High Stability and Reliability
- Telcordia GR-1209 and GR-1221 Compliance
- YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
Product Parameter:
| Parameter | Specification |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
| Insertion Loss (dB) Max. * | <7.3 | <10.4 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
| Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
| Directivity (dB) Min * | 55 |
| Return Loss (dB) Min * | 55(50) |
| Operating Temperature (°C) | -5~ +75 |
| Storage Temperature (°C) | -40 ~ +85 |
| Fiber length | 1m or custom length |
| Fiber Type | Corning SMF-28e fiber |
| Connector Type | Custom specified |
| Power Handling (mW) | 300 |
